Safe and easy LNG bunkering for Cruise vessels.

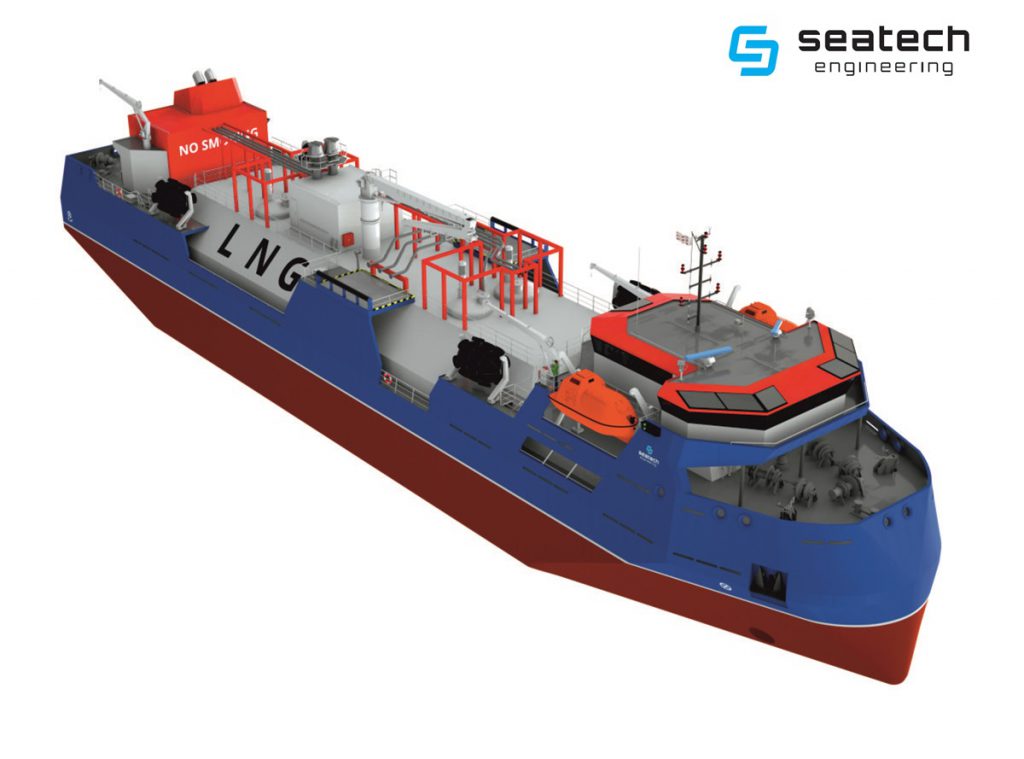

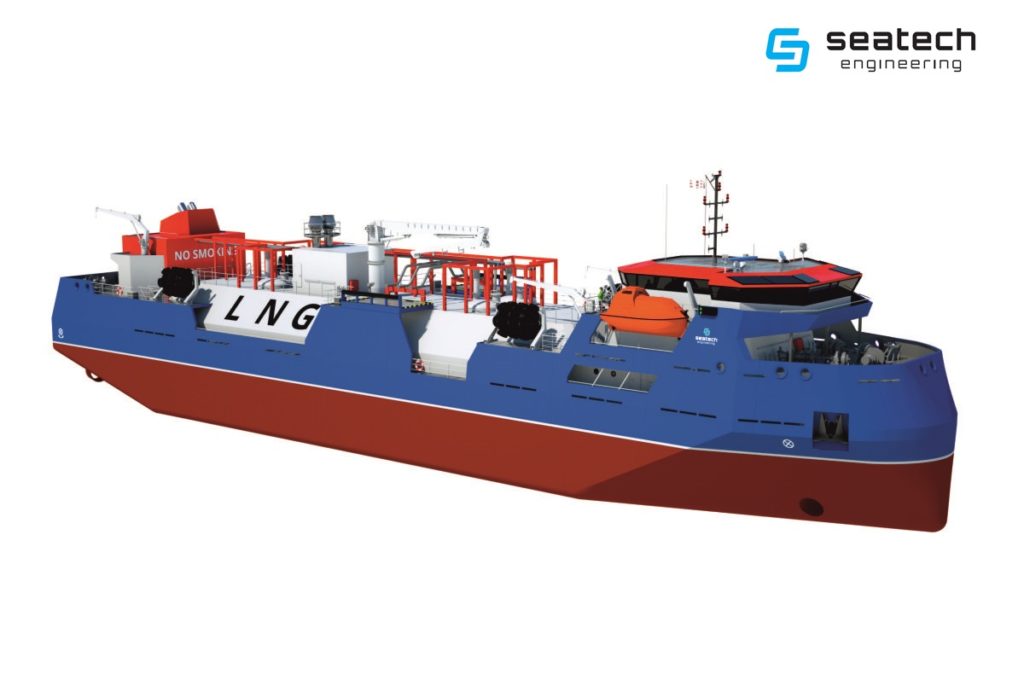

SE-601 is a bunkering vessel suitable for supplying various LNG fuelled ships. Knuckle boom crane, as well as variable operation draught, ensure flexible operation regardless of bunkered vessel type and LNG bunker station arrangement.

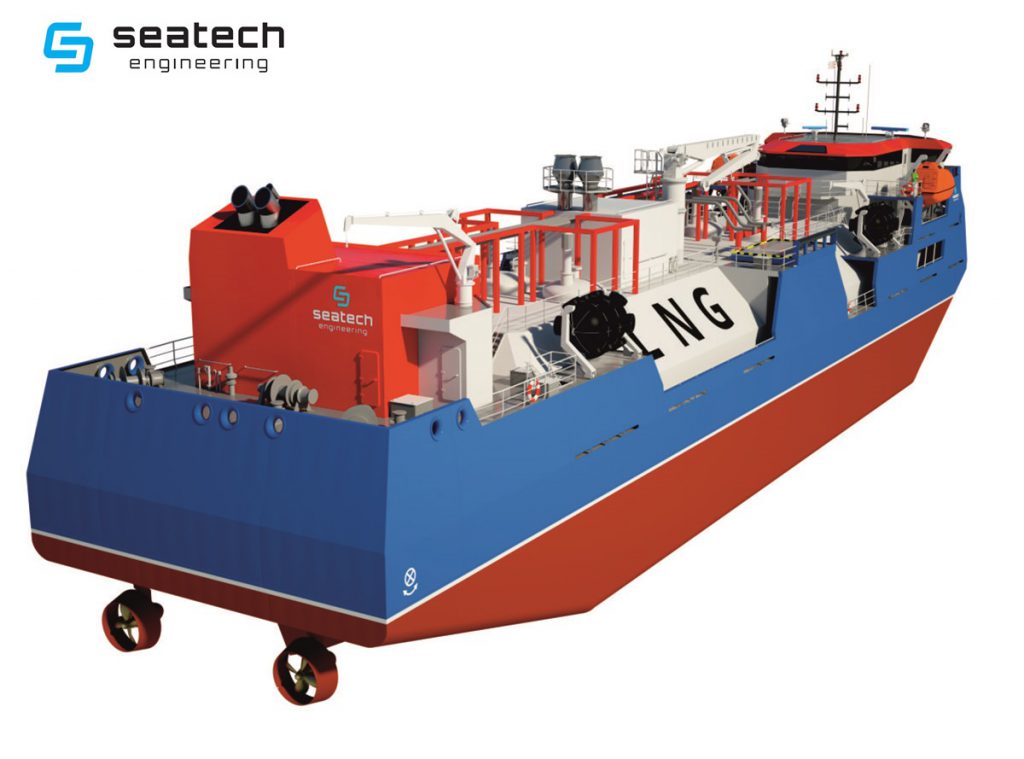

Two aft azimuth thrusters and forward transversal tunnel thruster guarantee excellent maneuverability without tug assistance. Flexible cargo handling system is ideal for supplying small scale LNG terminal located on shallow waters.
Low air draught allows bunkering operations of LNG fuelled cruise ships and free passing below its lifeboats exceeding the main hull. The vessel is suitable for use as small floating power plant fuelled by LNG and supply electric power to harbor grid.
| Principal characteristics | |
| Length over all: | 81.90 m |
| Breadth moulded: | 16.50 m |
| Depth to main deck: | 7.05 m |
| Design/Max Draught: | 4.00/5.00m |
| Deadweight at design draught: | 1500 t |
| Service Speed (75%MCR, 15%SM): | 10.00 kn |
| Installed power (Diesel electric): | 2×1000 kWe |
| Cruising range on MDO: | 2400 NM |
| LNG capacity: | 3000 m3 |
| Crew: | 10 persons |
| Cargo equipment | |
| Cargo containment: | 2 x 1 500m3 bilobe type C |
| Discharging rate: | 1 000 m3/h |
| Discharging pumps (deep well): | 4 x 250 m3/h |
| Fuel consumptions (LNG/MDO) | |
| At service speed: | 6.8/7.9 t/24 h |
| Optional equipment | |
| Hybrid propulsion system: | 450 kWh |
| Class | DNVGL (or other IACS) +1A, R2 (Baltic), Tanker for liquified gas, Ship type 2G (-163 ºC, 500 kg/m3,0.4 MPa), Gas Bunker, GF, ICE 1B, E0, BIS, CLEAN(DESIGN), RP (2,50), NAUT-AW |
