Pilot Boat Seatech

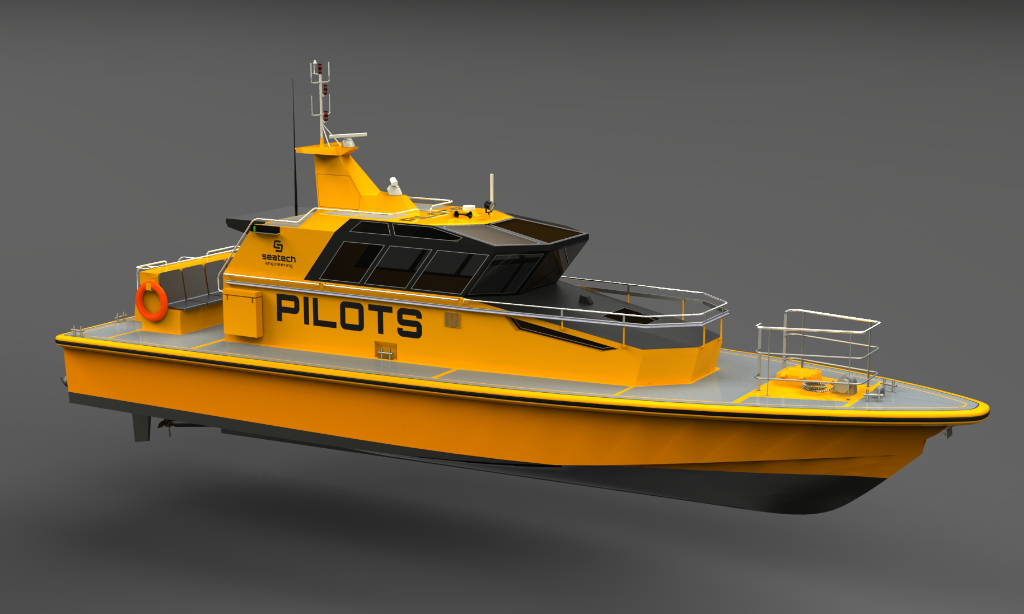

Pilot Boat

type:
offshore pilot vessel 16

built year:
concept


This 16m Pilot Boat is a vessel intended for sheltered navigation area. This fast motor boat is designed as armed, and equipped for pilots transportation security in the harbour and road areas, for ships assists and for maritime police missions. The ship arrangement and equipment arrangement will ensure comfortable access while maintenance and overhaulings. The hull shape is designed as deep V-type. The hull of the pilot boat will be made of steel type A. The superstructure above main deck and the mast will be made of marine grade aluminium alloys. Main deck will have a 100 mm camber and a sheer of 150 mm. The wheelhouse is equipped with control desk, 5 seats for passengers and one pilot’s seat. The space below the main deck is divided in longitudinal direction into 5 areas: fore peak, pumps room/store/chain locker, accommodation room, machinery room, steering gear room. Accommodation room below the main deck is a comfortable closed space with folding table, cupboard and lounge.

Principal dimensions
Length o.a. 16 m
Length b.p.p. 15,36 m
Breadth o.a. 4,70 m
Breadth at waterline 2,25 m
Depth to the main deck line 4,0/4,70 m
Draught o.a. 2,00 m
Engine power 2 x 662 kW at 2100 rpm
Propulsion 2 x fixed pitch propellers
Speed 25 kn
Crew 6 persons
Download full leaflet CLICK HERE
OPV speed boat seatech patrol

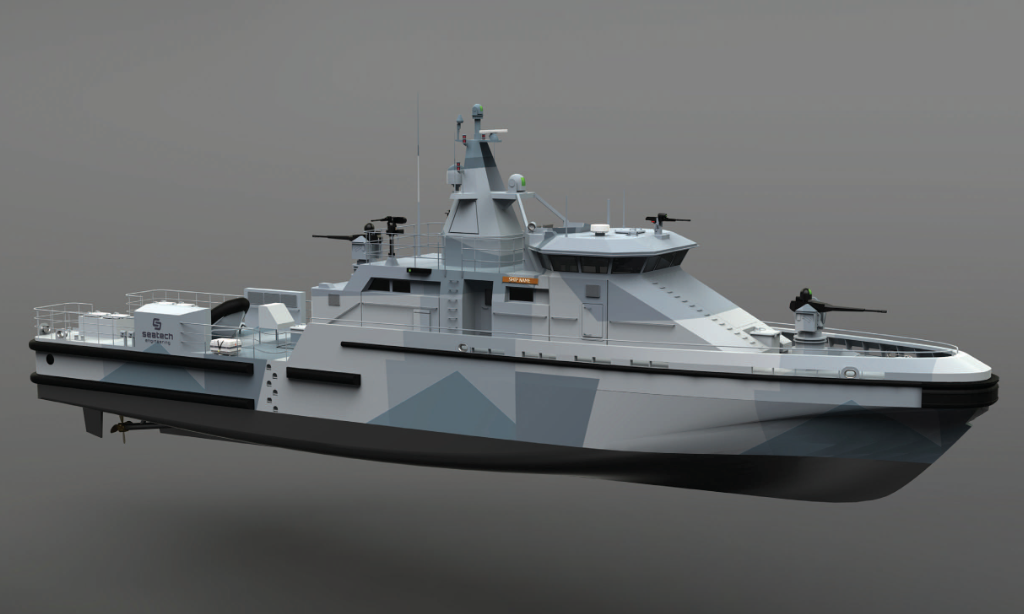

OPV PA35

type:
offshore patrol vessel 35 m

built year:
concept


The Offshore Patrol Vessel PA35 is designed by Seatech Engineering Ltd designing team. The main purpose of this project was creating a vessel for the following tasks: maritime police missions, coastal patrol, supervision of exclusive economic zone, preventive operations, maritime border protecting, vessels identification and their exact position determination, counteraction of piracy and terrorism at sea, counteraction the smuggling and immigration control, fishing protection and marine environment protection, pursuit and apprehension of the suspected vessels, inspection and control of the vessels. Designed patrol boat PA35 is a monohull with the hull of displacement, intermediate frames type between U and V-type, raked stem and transom aft. The chosen ship form together with propulsion makes this vessel cost effective, measured space arrangement brings maximum comfort for the crew. Rules and regulations The ship will comply with all following rules and regulations: Seagoing vessels classification and construction rules of BV of other acknowledged Classification Society, IMO: Convention on the International Regulations for Preventing Collisions at Sea COLREG, IMO: International Convention for the Prevention of Pollution from Ships MARPOL, IMO: International Convention on Tonnage Measurement of Ships.

Principal dimensions
Length o.a. 35,60 m
Length b.p.p. 32,50 m
Breadth o.a. 7,20 m
Breadth at waterline 6,56 m
Depth to the main deck line 4,0/4,70 m
Draught o.a. 2,00 m
Engine power 2 x (1050-1970) kW
Propulsion 2 x fixed pitch propellers
Speed 16/25 kn
Crew 20 persons
Cruising range 1500 mn/at speed 16 kn
Download full leaflet CLICK HERE
OPV-55 patrol boat seatech

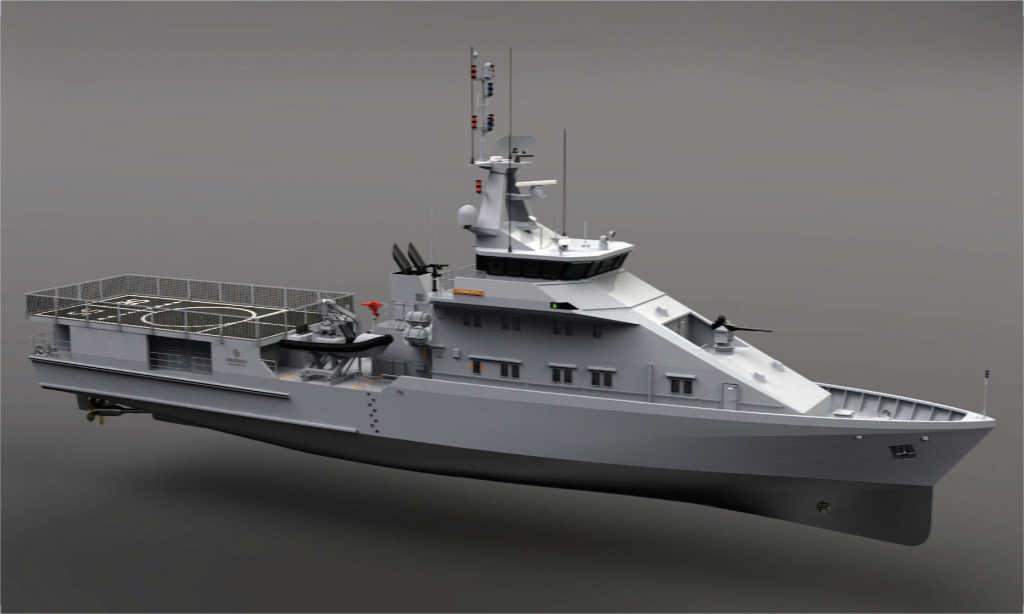

OPV PA55

type:
offshore patrol vessel 55 m

built year:
concept


The Offshore Patrol Vessel PA55 is designed by Seatech Engineering Ltd. The main challenge for designing team was creating a vessel able for the following specific functions: patrol operation on coastal and international waters; control and surveillance of exclusive economic zone; defending of the maritime border, and preventive actions; identification of ships and their accurate position; preventive actions against piracy and maritime terrorism; combating smuggling and immigration control; patrolling / SAR action in co-operation with helicopter; protection of fisheries and marine environment protection; fire fighting at sea; first medical help.

Principal dimensions
Length o.a. 55,00 m
Length b.p.p. 50,40 m
Breadth o.a. 9,20 m
Breadth at waterline 8,30 m
Depth to the main deck line 4,90 m
Draught o.a. 2,30 m
Engine power 2 x 4300 kW
Propulsion 2 x contrallable pitch propellers
Speed 16/25 kn
Crew 33 persons
Cruising range 3000 mn
Download full leaflet CLICK HERE
